Installing Label Printer Driver on Mac and prepare before use

Installing Label Printer Driver on Mac

1. Before installation, please ensure the printer is connected and turned on!

2. Double click the "pkg" installer to begin. If the driver cannot open, check the articles:

1-2-0. Initial Setup - MAC: Setting Security & Privacy before installing driver

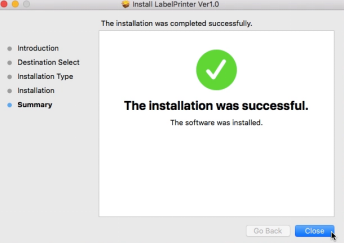

3. Follow the installation steps until you receive "Installation was successful" message.

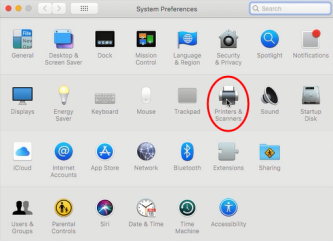

4. Click "" and go to "System Preferences" -> select "Printer & Scanners"

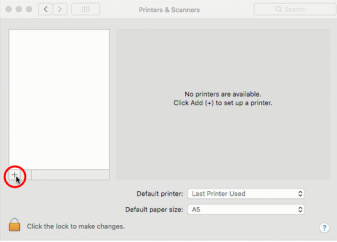

5. Click "+" to add a printer

6. Select "Label Printer"-> Click "Select Software " under "Use"

-> choose "Label Printer " and click "OK "

-> Click "Add"

7. Set "Label Printer" as default printer

Prepare before use

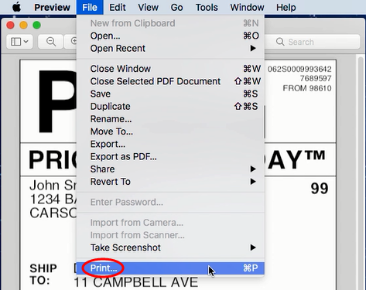

1. Open desired file (e.g. a PDF). Click "File" and choose "Print". Select "Show Details"

2. Choose a paper size from "Paper Sizes".

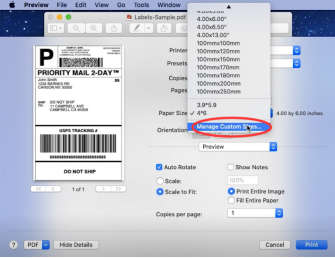

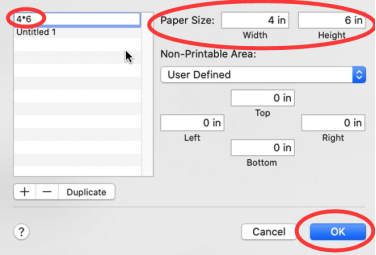

If the size you need is not listed, then click "Manage Custom Sizes", input width and height, then click "OK".

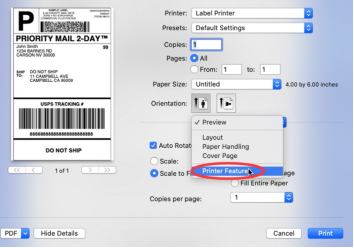

3. Select "Printer Features" in "Preview", you can set up printer properties, such as "Media Tracking", "Darkness" and "Print speed".

4. Select paper type in "Media Tracking". Choose from "Continuous", "Gap" or "Black Line".

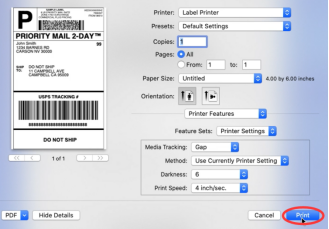

5. You can change the printing speed and the Darkness of your printing

(Larger number means higher Darkness)

6. After setup, click "Print"
