Adjusting Label Margins

Created by am242 support, Modified on Sun, 29 May 2022 at 10:34 PM by am242 support

Sometimes your shipping platform or the settings on your application results in prints that are off center or cut-off.

You can adjust these margins and define new paper sizes by the following method.



For MAC:

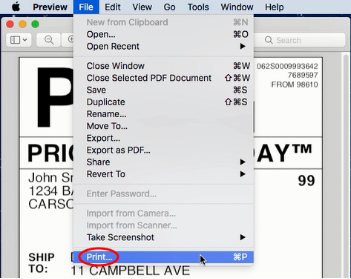

1. Open desired file (e.g. a PDF). Click "File"and choose "Print". Select "Show Details" .

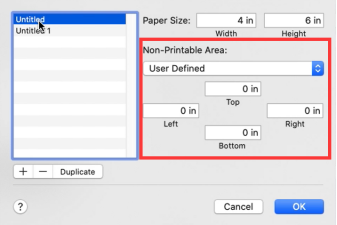

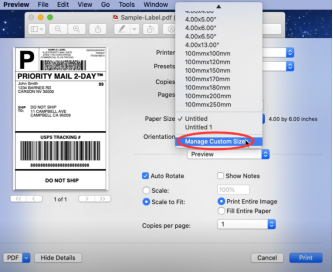

2.Click "Manage Custom Sizes". Adjust the margins as desired on "Non-Printable Area" . You may need to do some trial and error to find the perfect combination.



3.Click on "OK" to send these settings to the printer for your next print.



For Win:

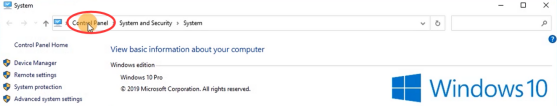

1. Go to "Control panel" -> "Devices and Printers"

(Right click on "This PC", choose "Properties", then click on "Control panel"-> "Devices and Printers")







-> Right click on "Label Printer" -> choose "Printer Preferences"

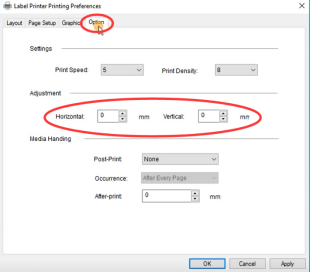

2. -> Go to the "Option". Adjust the margins as desired on "Adjustment" . You may need to do some trial and error to find the perfect combination. You may enter both negative and positive values.



3.Click on "OK" to send these settings to the printer for your next print.
